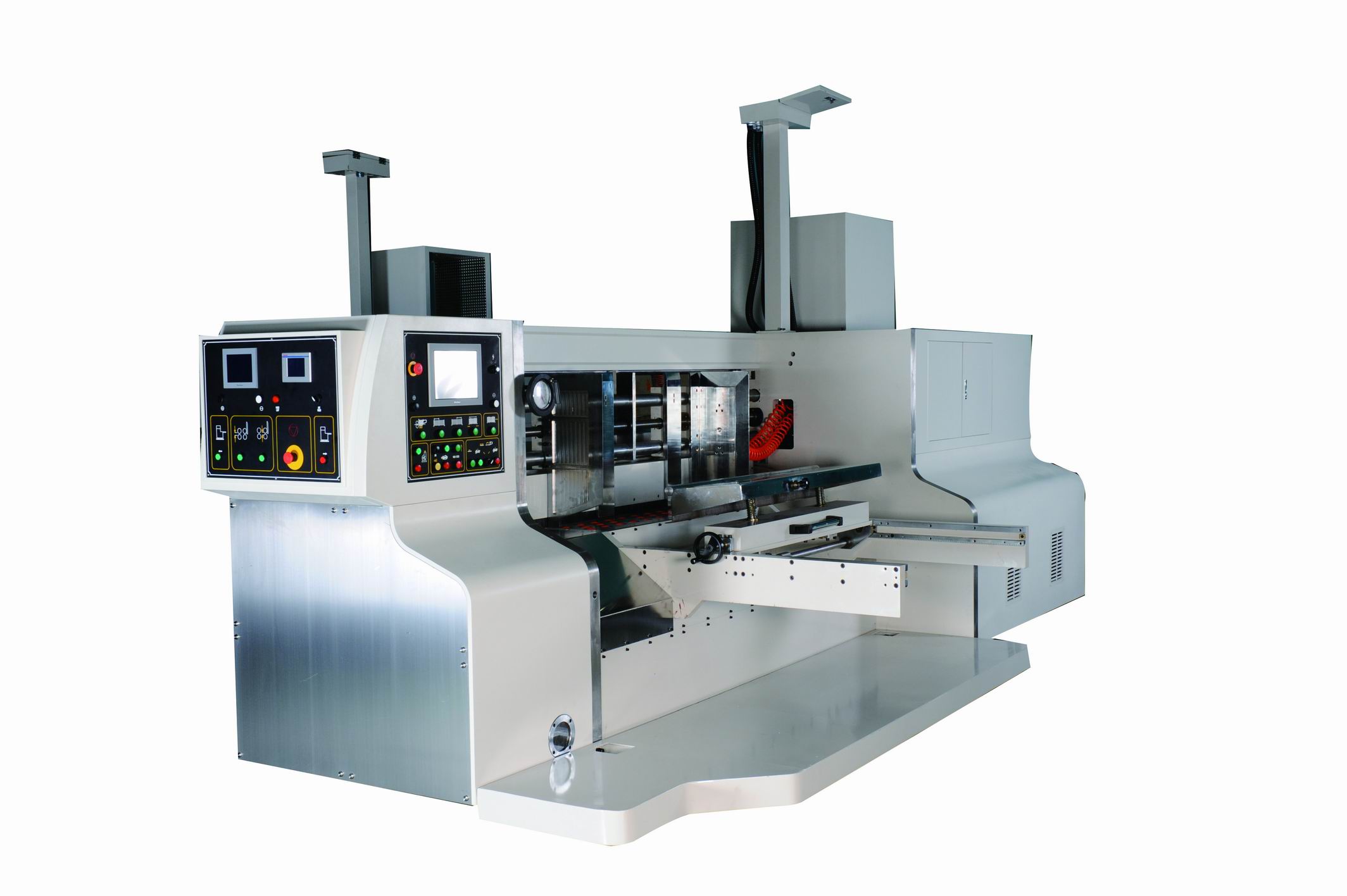

I. Feeder Unit
Extended wheel type lead edge feeder for high speed and precise sheet feeding
Capable of 3/5/7ply corrugated boards from micro-wave to heavy duty board
DC anti-electro static dust cleaning system, with high-volume vacuum suction for better printing result
Single point entry of all box data with automatic control of each unit of the machine
Side guides motorized control with auto squaring function
Auto zero for fast job setting with minimized trial wastage

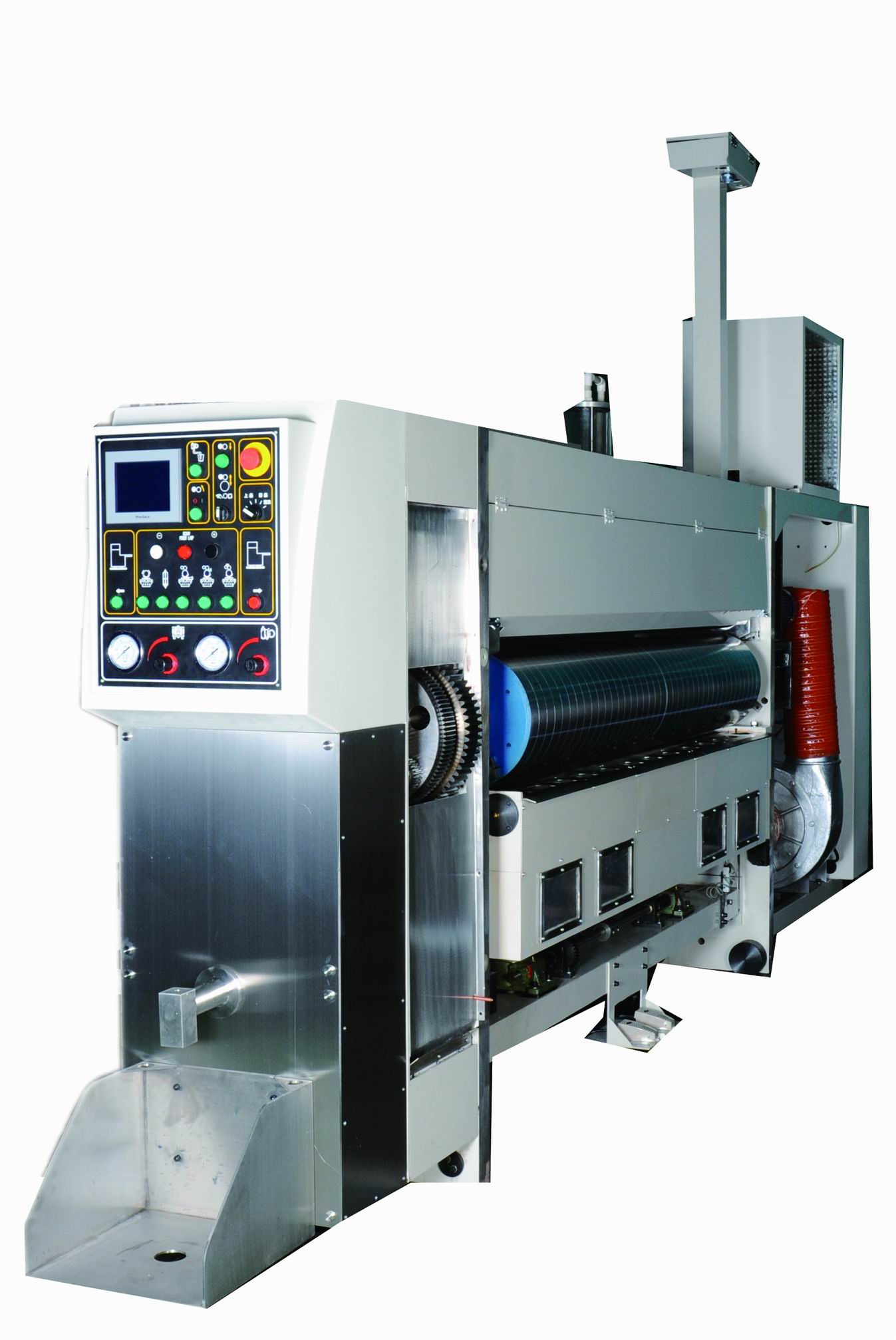

II. Printer
PLC computerized precise printing registration with touch screen setting and auto zero
Vacuum transfer with inverter controlled suction strength for high conveying precision
Ceramic anilox roll with chamber doctor blade for high graphic printing requirement
Auto resuming printing position after stereo cleaning.
Motorized setting of vacuum platform up/down for different board thickness
Special linear speed design between anilox and rubber roll, for optimized ink doctoring effect
Auto alarm for ink shortage warning
PLC controlled ink recollection and washing system for fast ink washing and ink saving
Imported Pneumatic duplex diaphragm ink pump for stable ink supply and circulation

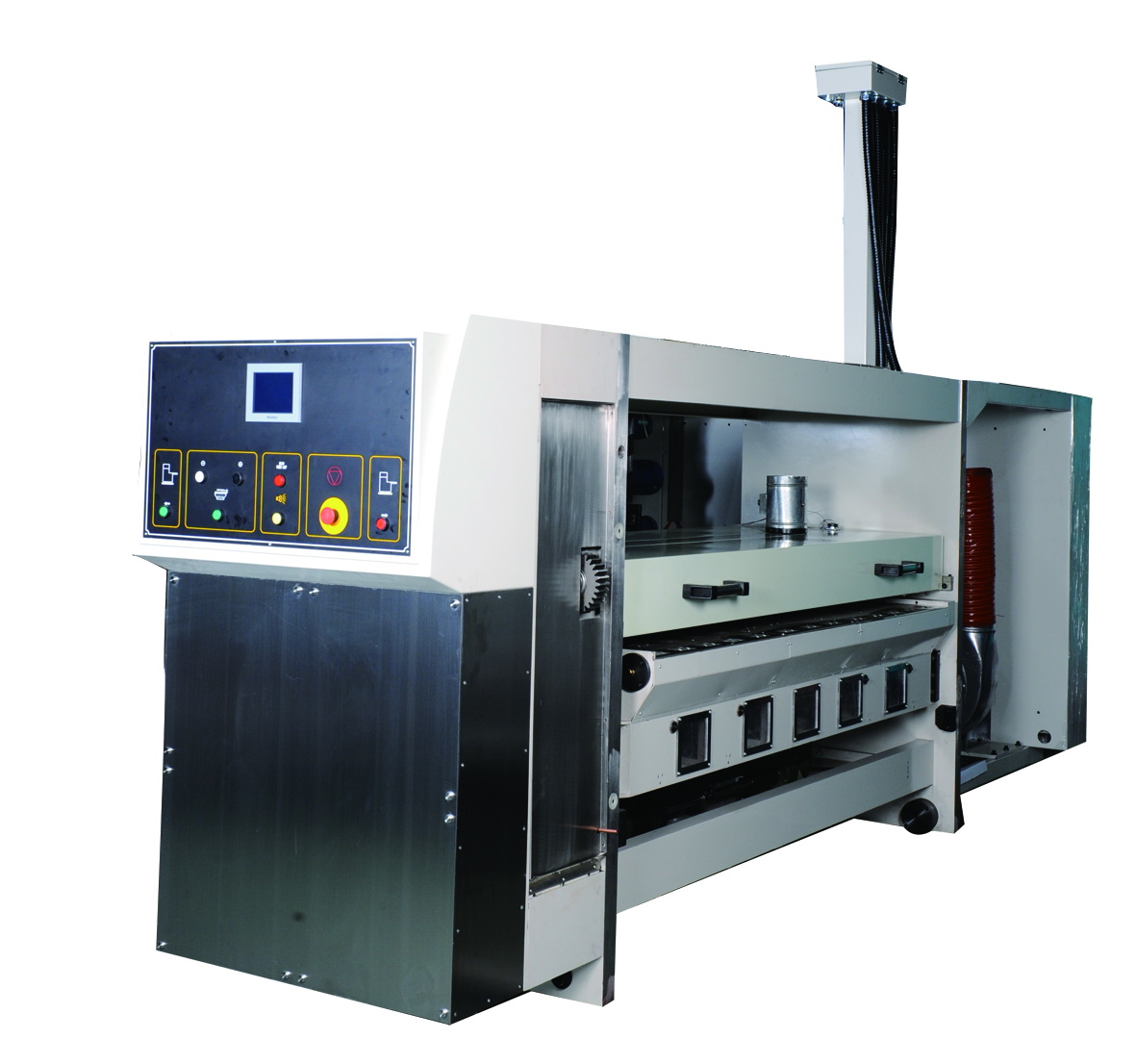

III. Dryer
High efficient drying system composed of four parts: wind supply, heating system, temperature control system and safety protection system
Wind supply: low noise centrifugal high pressure blower to ensure clean wind supply
Heating system: aluminium oxide frame, stainless wind output and high quality crystal thermal insulation cellucotton for stable and consistent performance in long term high temperature
Temperature control system: PID/SSR（SCR）control with precise digital display for temperature changing
Safety protection system: auto self-protection with overload motor and auto alarm in abnormal situation
Fast heating with digital temperature control up to 350℃ with minimized thermal lag
Custom made high temperature resistant hot wind blower with recirculation system, saving electricity consumption up to 51﹪-70﹪.
High volume, less wastage and heat exchange close to 100%, featuring energy saving, high efficiency and environment friendliness.
Temperature can be custom set according to each special printing job.
With vacuum transfer to convey corrugated board to the next station
IV. Varnisher
Vacuum transfer with inverter controlled suction strength for high conveying precision
Double chamber doctor blade for saving varnish consumption
Auto resuming of varnishing position after stereo cleaning.

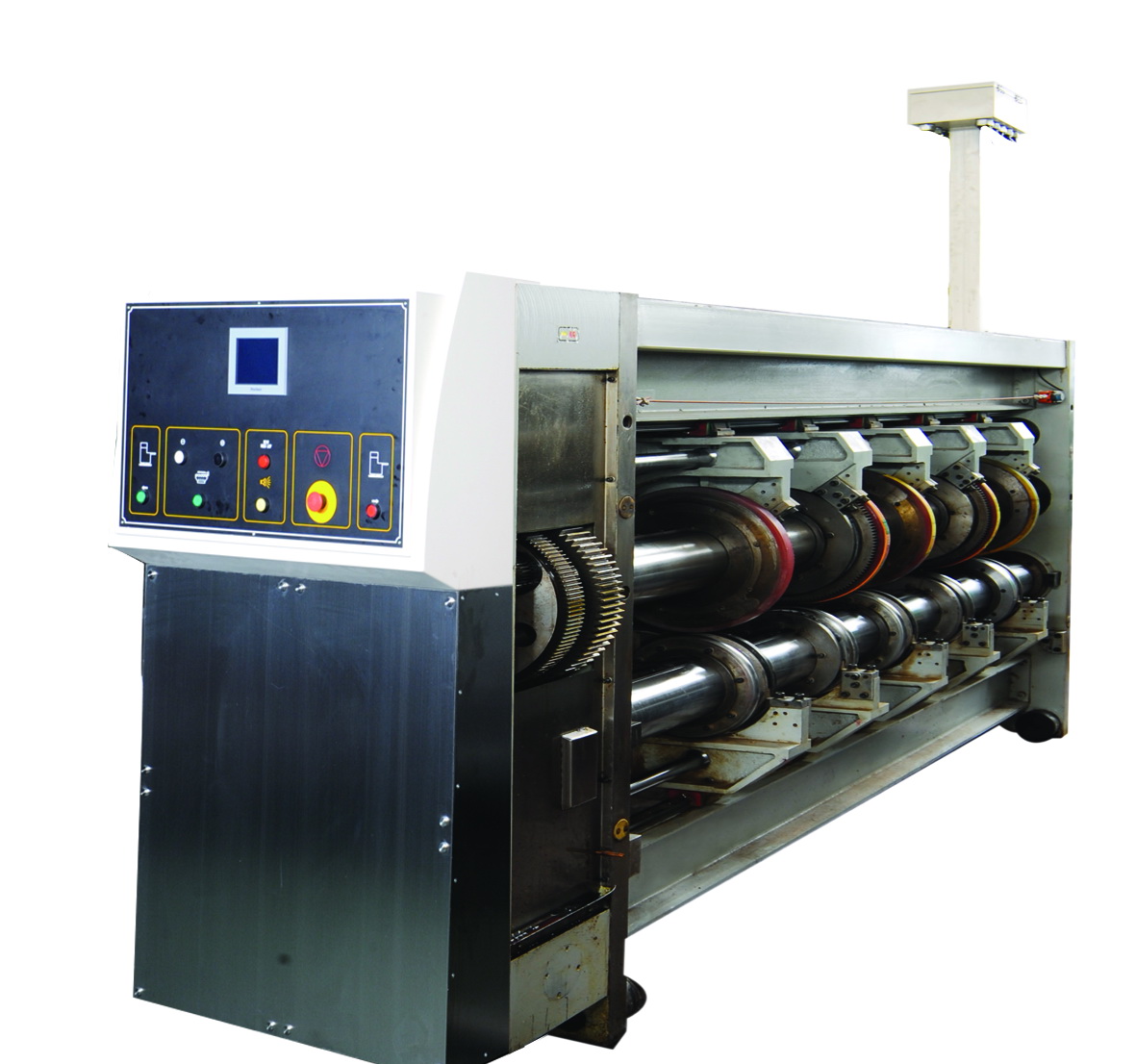

v. Slotter Creaser
PLC Computerized and synchronized setting for all box dimensions
Lateral movement of slotting blades controlled by precise linear guide and screw shaft with high precision encoder for
Pre-creasers and creasers, with PU wrapping, to ensure perfect folding of box and avoid liner cracking
Synchronized movement of blade, creaser and pre-creaser with PLC computerized control
Moveable middle blade for converting two-piece box
Upper and lower blade with special designed precise matching to prolong the blade using life
Flap cutting blade with spring effect for cutting both 3/5 ply boards without changing
Handle cutting die device on option for cutting handle holes

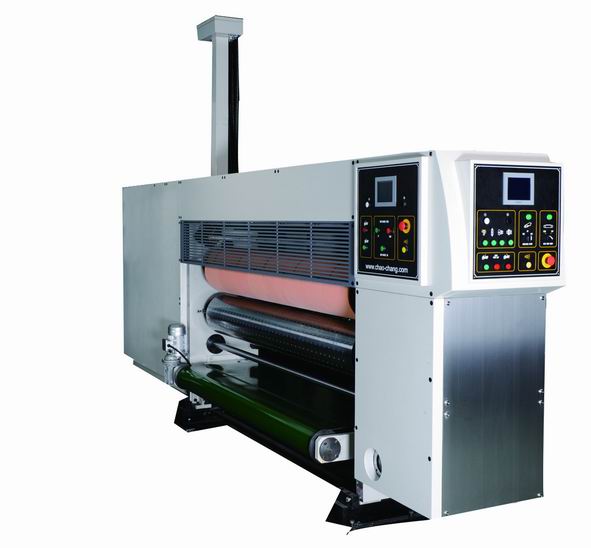

VI. Die Cutter
Independent servo drive to eliminate the vibration from high die cutting pressure and ensure premium printing quality
Auto movement of anvil cylinder in lateral direction for 60mm left to right, to prolong the using life of anvil cover.
PLC computerized setting for die cutting precision in circular and lateral
Automatic linear speed differential compensation, ensures consistent and even die cutting accuracy
Automatic engagement and disengagement of die roll from anvil roll
Automatic anvil blanket renew device for prolonged blanket using life.
Equilibrium calibrated die cutting cylinder for maximized running steadiness

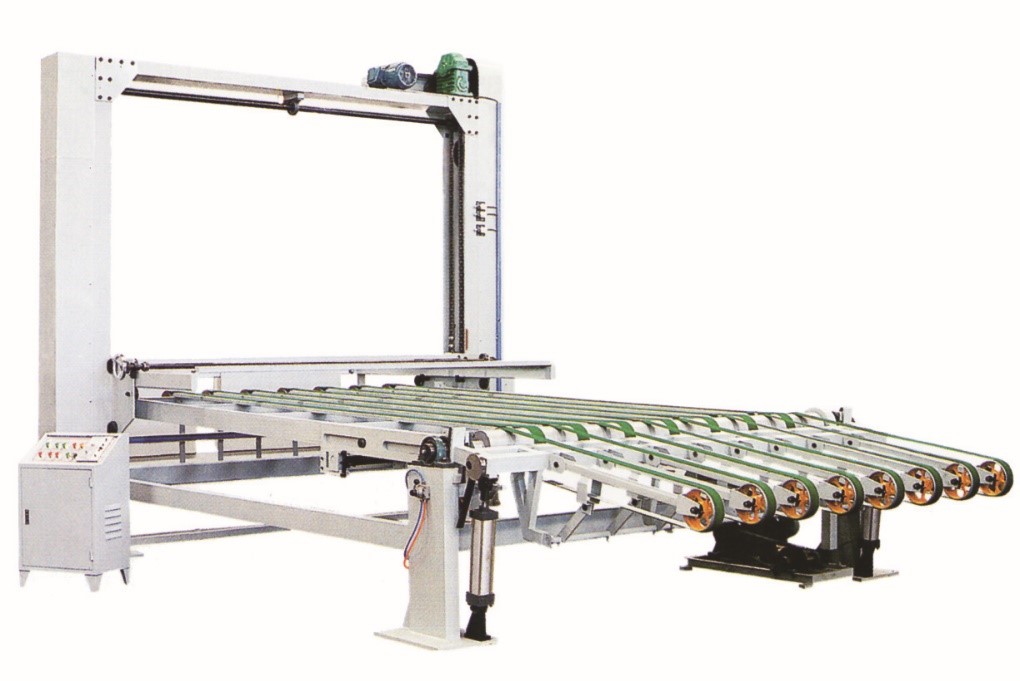

VII. Auto Stacker
Two types of operation mode: manual and automatic
Automatic piling and lift up/down
Pneumatic control for adjustment of stacking height
Protective system applied for the operator’s safety
Max stacking height: 1600mm
With squaring function for board stacking alignment
Vibrator optional for thorough cleaning of die cut scraps
